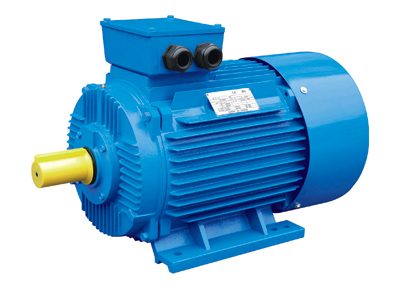

Y2 系列三相异步电动机
Y2 系列三相异步电动机
- 产品详情
- 产品参数
产品简介
Y2 系列三相异步电动机由全国统一设计，产品达到90年代国际先进水平，是Y系列电机的更新换代产品，具有结构新颖、造型美观、低振动、代噪声等特点。
使用条件
防护等级：IP54 或 IP55
绝缘等级：B. F. H
冷却方式：IC0141 使用条件：
环境温度： -15℃≤θ≤40℃
海拔：不超过1000m
额定电压：± 5%
技术参数
| 型号 | 功率 (kw) | 电流 (A) | 功率因数 | 效 率(%) | 转速 (r/min) | 堵转转矩 额定转矩 | 堵转电流 额定电流 | 最大转矩 额定转矩 |
| Synchronous Speed 3000 r/min (2 Poles) | ||||||||
| Y2-631-2 | 0.18 | 0.52 | 0.80 | 65.0 | 2825 | 2.2 | 5.5 | 2.2 |
| Y2-362-2 | 0.25 | 0.69 | 0.81 | 68.0 | 2840 | 2.2 | 5.0 | 2.2 |
| Y2-711-2 | 0.37 | 0.99 | 0.82 | 70.0 | 2840 | 2.2 | 6.0 | 2.2 |
| Y2-712-2 | 0.55 | 1.4 | 0.83 | 73.0 | 2880 | 2.2 | 6.0 | 2.2 |
| Y2-801-2 | 0.75 | 1.8 | 0.84 | 75.0 | 2890 | 2.2 | 6.0 | 2.2 |
| Y2-802-2 | 1.1 | 2.6 | 0.84 | 77.0 | 2900 | 2.2 | 7.0 | 2.2 |
| Y2-90S-2 | 1.5 | 3.4 | 0.85 | 79.0 | 2900 | 2.2 | 7.0 | 2.2 |
| Y2-90L-2 | 2.2 | 4.8 | 0.87 | 81.0 | 29000 | 2.2 | 7.0 | 2.2 |
| Y2-100L-2 | 3 | 6.3 | 0.88 | 83.0 | 2930 | 2.2 | 7.0 | 2.2 |
| Y2-112M-2 | 4 | 8.1 | 0.88 | 85.0 | 2930 | 2.2 | 8.0 | 2.2 |
| Y2-132S1-2 | 5.5 | 11 | 0.88 | 86.0 | 2940 | 2.2 | 8.0 | 2.2 |
| Y2-132S2-2 | 7.5 | 15 | 0.88 | 87.0 | 2950 | 2.2 | 8.0 | 2.2 |
| Y2-160M1-2 | 11 | 21.3 | 0.89 | 88.0 | 2950 | 2 | 8.0 | 2.2 |
| Y2-160M2-2 | 15 | 28.7 | 0.90 | 89.0 | 2970 | 2 | 8.0 | 2.2 |
| Y2-160L-2 | 18.5 | 34.6 | 0.90 | 90.0 | 2970 | 2 | 8.0 | 2.2 |
| Y2-180M-2 | 22 | 40.9 | 0.90 | 90.0 | 2970 | 2 | 8.0 | 2.2 |
| Y2-200L1-2 | 30 | 55.4 | 0.90 | 91.2 | 2970 | 2 | 8.0 | 2.2 |
| Y2-200L2-2 | 37 | 67.7 | 0.90 | 92.0 | 2980 | 2 | 8.0 | 2.2 |
| Y2-225M-2 | 45 | 82.3 | 0.90 | 92.3 | 2980 | 1.8 | 8.0 | 2.2 |
| Y2-250M-2 | 55 | 101 | 0.90 | 92.5 | 2980 | 1.8 | 7.0 | 2.2 |
| Y2-280S-2 | 75 | 134 | 0.90 | 93.0 | 2980 | 1.8 | 7.0 | 2.2 |
| Y2-280M-2 | 90 | 160 | 0.91 | 93.8 | 2980 | 1.8 | 7.0 | 2.2 |
| Y2-315S-2 | 110 | 195 | 0.91 | 94 | 2980 | 1.8 | 6.8 | 2.2 |
| Y2-315M-2 | 132 | 233 | 0.91 | 94.5 | 2980 | 1.8 | 6.8 | 2.2 |
| Y2-315L1-2 | 160 | 279 | 0.92 | 94.6 | 2980 | 1.8 | 6.8 | 2.2 |
| Y2-315L2-2 | 200 | 348 | 0.92 | 94.8 | 2980 | 1.8 | 6.8 | 2.2 |
| Y2-355M1-2 | 250 | 433 | 0.92 | 95.3 | 2980 | 1.6 | 7.0 | 2.2 |
| Y2-355L2-2 | 315 | 544 | 0.92 | 95.6 | 2980 | 1.6 | 7.1 | 2.2 |
| Synchronous Speed 1500 r/min (4 Poles) | ||||||||
| Y2-631-4 | 0.12 | 0.44 | 0.72 | 57.0 | 1400 | 2.2 | 4.5 | 2.2 |
| Y2-632-4 | 0.18 | 0.62 | 0.73 | 60.0 | 1400 | 2.2 | 4.5 | 2.2 |
| Y2-711-4 | 0.25 | 0.79 | 0.74 | 65.0 | 1400 | 2.2 | 5.5 | 2.2 |
| Y2-712-4 | 0.37 | 1.12 | 0.75 | 67.0 | 1400 | 2.2 | 5.5 | 2.2 |
| Y2-801-4 | 0.55 | 1.6 | 0.75 | 71.0 | 1400 | 2.2 | 5.5 | 2.2 |
| Y2-802-4 | 0.75 | 2.0 | 0.77 | 73.0 | 1400 | 2.2 | 6.0 | 2.2 |
| Y2-90S-4 | 1.1 | 2.9 | 0.77 | 750 | 1400 | 2.2 | 6.0 | 2.2 |
| Y2-90L-4 | 1.5 | 3.7 | 0.79 | 78.0 | 1400 | 2.2 | 6.0 | 2.2 |
| Y2-100L1-4 | 2.2 | 5.1 | 0.81 | 80.0 | 1420 | 2.2 | 7.0 | 2.2 |
| Y2-100L2-4 | 3 | 6.8 | 0.82 | 82.0 | 1420 | 2.2 | 7.0 | 2.2 |
| Y2-112M-4 | 4 | 8.8 | 0.82 | 84.0 | 1440 | 2.2 | 7.0 | 2.2 |
| Y2-132S-4 | 5.5 | 11.8 | 0.83 | 85.0 | 1440 | 2.2 | 7.0 | 2.2 |
| Y2-132M-4 | 7.5 | 15.5 | 0.84 | 87.0 | 1440 | 2.0 | 7.0 | 2.2 |
| Y2-160M-4 | 11 | 22.3 | 0.85 | 88.0 | 1460 | 2.0 | 7.0 | 2.2 |
| Y2-160L-4 | 15 | 30 | 0.85 | 89.0 | 1460 | 2.0 | 7.0 | 2.2 |
| Y2-180M-4 | 18.5 | 36.4 | 0.85 | 90.5 | 1470 | 2.2 | 7.5 | 2.2 |
| Y2-180L-4 | 22 | 43.1 | 0.85 | 91.0 | 1470 | 2.2 | 7.5 | 2.2 |
| Y2-200L-4 | 30 | 58.4 | 0.86 | 92.0 | 1470 | 2.2 | 7.5 | 2.2 |
| Y2-225S-4 | 37 | 69.9 | 0.87 | 92.5 | 1480 | 2.2 | 7.5 | 2.2 |
| Y2-225M-4 | 45 | 84.7 | 0.87 | 92.8 | 1480 | 2.2 | 7.5 | 2.2 |
| Y2-250M-4 | 55 | 103 | 0.89 | 93.0 | 1480 | 2.2 | 7.0 | 2.2 |
| Y2-280S-4 | 75 | 140 | 0.86 | 93.8 | 1480 | 2.2 | 7.0 | 2.2 |
| Y2-280M-4 | 90 | 167 | 0.86 | 94.2 | 1490 | 2.2 | 7.0 | 2.2 |
| Y2-315S-4 | 110 | 201 | 0.87 | 94.5 | 1490 | 2.1 | 6.9 | 2.2 |
| Y2-315M-4 | 132 | 240 | 0.87 | 94.8 | 1490 | 2.1 | 6.9 | 2.2 |
| Y2-315L1-4 | 160 | 287 | 0.88 | 94.9 | 1490 | 2.1 | 6.9 | 2.2 |
| Y2-315L2-4 | 200 | 359 | 0.88 | 95.0 | 1490 | 2.3 | 6.9 | 2.2 |
| Y2-355M-4 | 250 | 443 | 0.88 | 95.3 | 1485 | 2.3 | 6.8 | 2.2 |
| Y2-355L-4 | 315 | 556 | 0.89 | 95.6 | 1485 | 2.2 | 6.9 | 2.2 |
| Synchronous Speed 1000 r/min (6 Poles) | ||||||||
| Y2-711-6 | 0.18 | 0.74 | 0.66 | 56.0 | 900 | 2.2 | 4.0 | 2.2 |
| Y2-712-6 | 0.25 | 0.94 | 0.68 | 59.0 | 900 | 2.0 | 4.0 | 2.2 |
| Y2-801-6 | 0.37 | 1.3 | 0.70 | 62.0 | 900 | 2.0 | 5.0 | 2.2 |
| Y2-802-6 | 0.55 | 1.8 | 0.72 | 65.0 | 900 | 2.0 | 5.0 | 2.2 |
| Y2-90S-6 | 0.75 | 2.3 | 0.72 | 69.0 | 910 | 2.0 | 5.5 | 2.2 |
| Y2-90L-6 | 1.1 | 3.2 | 0.73 | 72.0 | 910 | 2.0 | 5.5 | 2.2 |
| Y2-100L-6 | 1.5 | 3.9 | 0.75 | 76.0 | 940 | 2.0 | 5.5 | 2.2 |
| Y2-112M-6 | 2.2 | 5.6 | 0.76 | 79.0 | 940 | 2.0 | 6.5 | 2.2 |
| Y2-132S-6 | 3 | 7.4 | 0.76 | 81.0 | 960 | 2.0 | 6.5 | 2.2 |
| Y2-132M1-6 | 4 | 9.7 | 0.76 | 82.0 | 960 | 2.0 | 6.5 | 2.2 |
| Y2-132M2-6 | 5.5 | 12.9 | 0.77 | 84.0 | 960 | 2.0 | 6.5 | 2.0 |
| Y2-160M-6 | 7.5 | 16.5 | 0.77 | 86.0 | 970 | 2.0 | 6.5 | 2.0 |
| Y2-160L-6 | 11 | 24.1 | 0.78 | 87.5 | 970 | 2.0 | 6.5 | 2.0 |
| Y2-180L-6 | 15 | 31.5 | 0.81 | 89.0 | 970 | 2.0 | 7.0 | 2.0 |
| Y2-200L1-6 | 18.5 | 38.5 | 0.81 | 90.0 | 970 | 2.0 | 7.0 | 2.0 |
| Y2-200L2-6 | 22 | 44.6 | 0.83 | 90.0 | 970 | 2.0 | 7.0 | 2.0 |
| Y2-225M-6 | 30 | 59.3 | 0.84 | 91.5 | 980 | 2.0 | 7.0 | 2.0 |
| Y2-250M-6 | 37 | 71.0 | 0.86 | 92.0 | 965 | 2.0 | 7.0 | 2.0 |
| Y2-280S-6 | 45 | 86.0 | 0.86 | 92.5 | 980 | 2.0 | 7.0 | 2.0 |
| Y2-280M-6 | 55 | 105 | 0.86 | 92.8 | 980 | 2.0 | 7.0 | 2.0 |
| Y2-315S-6 | 75 | 141 | 0.86 | 93.5 | 990 | 2.0 | 7.0 | 2.0 |
| Y2-315M-6 | 90 | 169 | 0.86 | 93.8 | 990 | 2.0 | 7.0 | 2.0 |
| Y2-315L1-6 | 110 | 206 | 0.86 | 94 | 990 | 2.0 | 6.7 | 2.0 |
| Y2-315L2-6 | 132 | 244 | 0.87 | 94.2 | 990 | 2.0 | 6.7 | 2.0 |
| Y2-355M1-6 | 160 | 292 | 0.88 | 94.5 | 990 | 1.9 | 6.7 | 2.0 |
| Y2-355M2-6 | 200 | 365 | 0.88 | 94.7 | 990 | 1.9 | 6.7 | 2.0 |
| Y2-355L-6 | 250 | 455 | 0.88 | 94.9 | 990 | 1.9 | 6.7 | 2.0 |
| Synchronous Speed 750 r/min (8 Poles) | ||||||||
| Y2-801-8 | 0.18 | 0.88 | 0.61 | 51.0 | 680 | 1.8 | 3.3 | 1.9 |
| Y2-802-8 | 0.25 | 1.15 | 0.61 | 54.0 | 680 | 1.8 | 3.3 | 1.9 |
| Y2-90S-8 | 0.37 | 1.5 | 0.61 | 62.0 | 680 | 1.8 | 4 | 1.9 |
| Y2-90L-8 | 0.55 | 2.2 | 0.61 | 63.0 | 700 | 1.8 | 4 | 2 |
| Y2-100L1-8 | 0.75 | 2.4 | 0.67 | 71.0 | 700 | 1.8 | 4 | 2 |
| Y2-100L2-8 | 1.1 | 3.3 | 0.69 | 73.0 | 700 | 1.8 | 5 | 2 |
| Y2-112M-8 | 1.5 | 4.5 | 0.69 | 75.0 | 700 | 1.8 | 5 | 2 |
| Y2-132S-8 | 2.2 | 6 | 0.71 | 78.0 | 710 | 2 | 6 | 2 |
| Y2-132M-8 | 3 | 7.9 | 0.73 | 79.0 | 710 | 2 | 6 | 2 |
| Y2-160M1-8 | 4 | 10.0 | 0.73 | 81.0 | 720 | 2 | 6 | 2 |
| Y2-160M2-8 | 5.5 | 13.6 | 0.74 | 83.0 | 720 | 2 | 6 | 2 |
| Y2-160L-8 | 7.5 | 17.7 | 0.75 | 85.5 | 720 | 2 | 6 | 2 |
| Y2-180L-8 | 11 | 25.1 | 0.76 | 87.5 | 730 | 2 | 6.6 | 2 |
| Y2-200L-8 | 15 | 34.0 | 0.76 | 88.0 | 730 | 2 | 6.6 | 2 |
| Y2-225S-8 | 18.5 | 40.0 | 0.76 | 90.0 | 740 | 1.9 | 6.6 | 2 |
| Y2-225M-8 | 22 | 47.0 | 0.78 | 90.5 | 740 | 1.9 | 6.6 | 2 |
| Y2-250M-8 | 30 | 64.0 | 0.79 | 91.0 | 740 | 1.9 | 6.6 | 2 |
| Y2-280S-8 | 37 | 78.0 | 0.79 | 91.5 | 740 | 1.9 | 6.6 | 2 |
| Y2-280M-8 | 45 | 94.0 | 0.79 | 92.0 | 740 | 1.9 | 6.6 | 2 |
| Y2-315S-8 | 55 | 111 | 0.81 | 92.8 | 740 | 1.8 | 6.6 | 2 |
| Y2-315M-8 | 75 | 151 | 0.81 | 93.0 | 740 | 1.8 | 6.6 | 2 |
| Y2-315L1-8 | 90 | 178 | 0.82 | 93.8 | 740 | 1.8 | 6.6 | 2 |
| Y2-315L2-8 | 110 | 217 | 0.82 | 94.0 | 740 | 1.8 | 6.4 | 2 |
| Y2-355M1-8 | 132 | 261 | 0.82 | 93.7 | 740 | 1.8 | 6.4 | 2 |
| Y2-355M2-8 | 160 | 313 | 0.82 | 94.2 | 740 | 1.8 | 6.4 | 2 |
| Y2-355L-8 | 200 | 388 | 0.83 | 94.5 | 740 | 1.8 | 6.4 | 2 |
| Synchronous Speed 600 r/min (10 Poles) | ||||||||
| Y2-315S-10 | 45 | 100 | 0.75 | 91.5 | 590 | 1.5 | 6.5 | 2.0 |
| Y2-315M-10 | 55 | 121 | 0.75 | 92 | 590 | 1.5 | 6.5 | 2.0 |
| Y2-315L1-10 | 75 | 162 | 0.76 | 92.5 | 590 | 1.5 | 6.5 | 2.0 |
| Y2-315L2-10 | 90 | 191 | 0.77 | 93 | 590 | 1.5 | 6.5 | 2.0 |
| Y2-355M1-10 | 110 | 230 | 0.78 | 93.2 | 590 | 1.3 | 6.0 | 2.0 |
| Y2-355M2-10 | 132 | 275 | 0.78 | 93.5 | 590 | 1.3 | 6.0 | 2.0 |
| Y2-355L-10 | 160 | 334 | 0.78 | 93.5 | 590 | 1.3 | 6.0 | 2.0 |
安装尺寸图
品牌
众志
类型
三相异步电动机
额定功率
0.12~315KW
机壳
铸铁壳
极数
2，4，6，8
防护等级
lP44，IP54，lP55
绝缘等级
B，F，H
